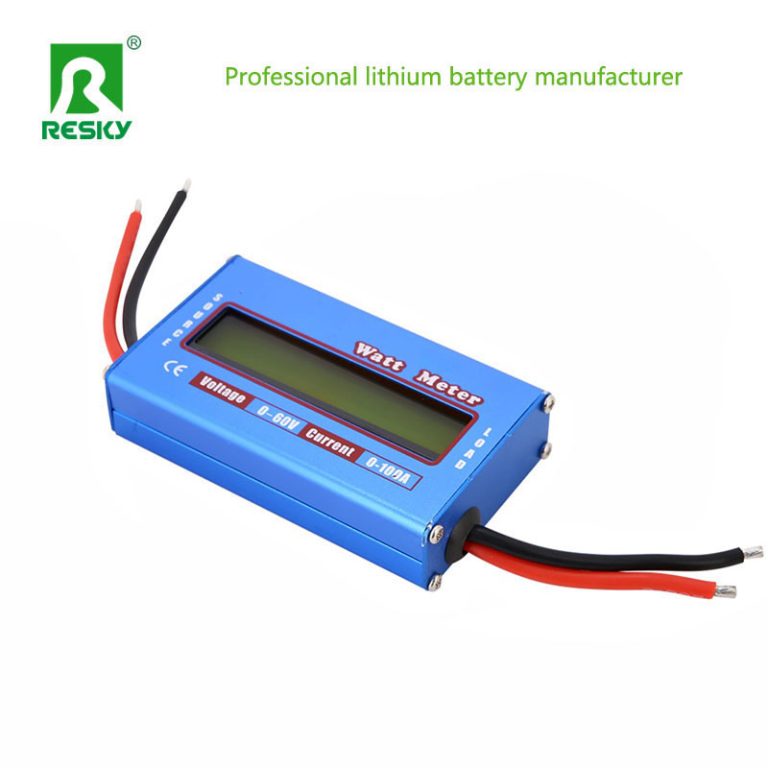

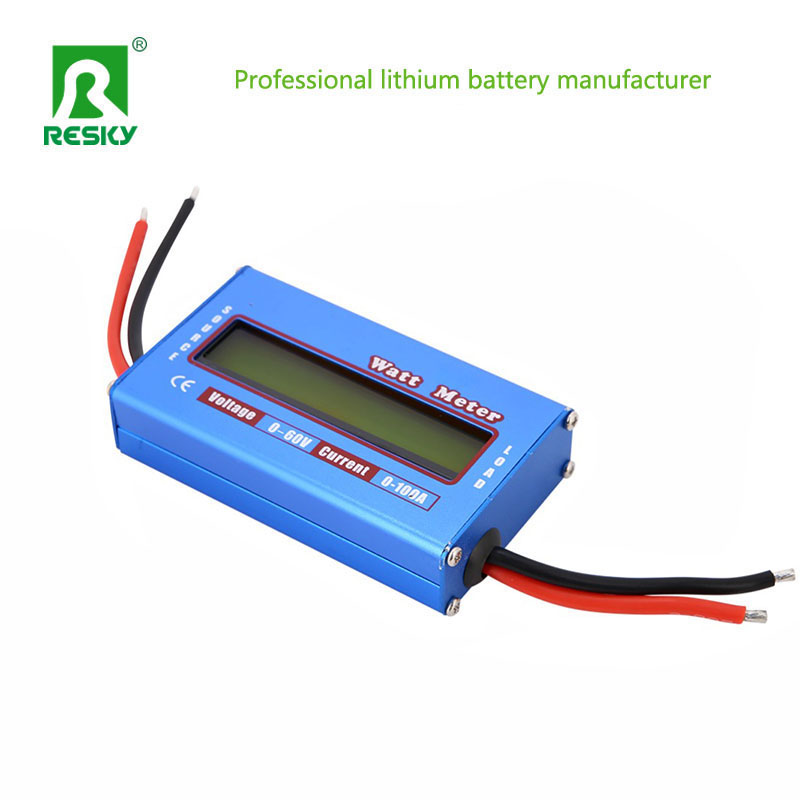

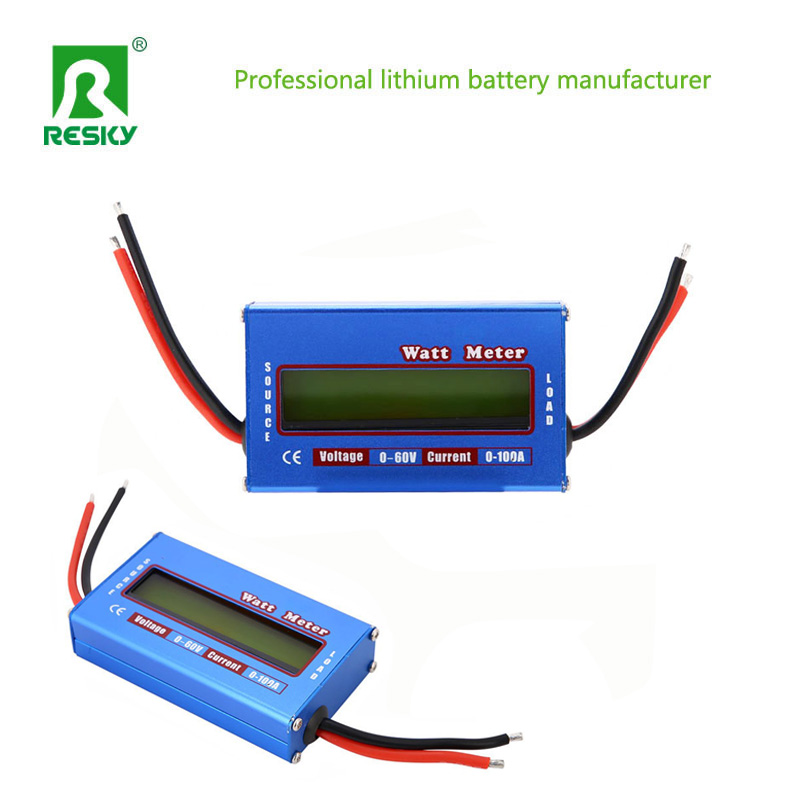

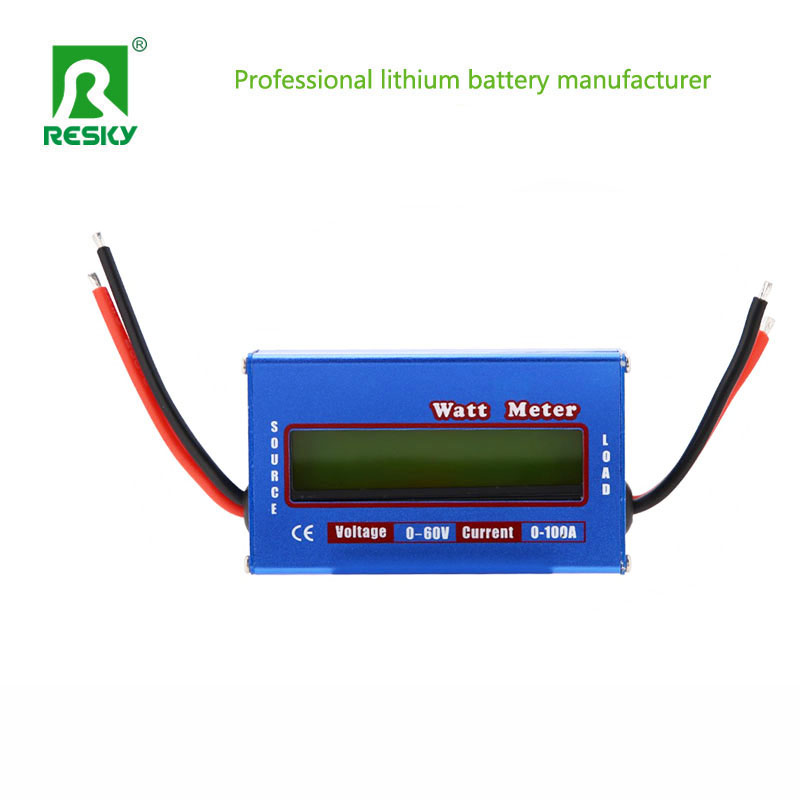

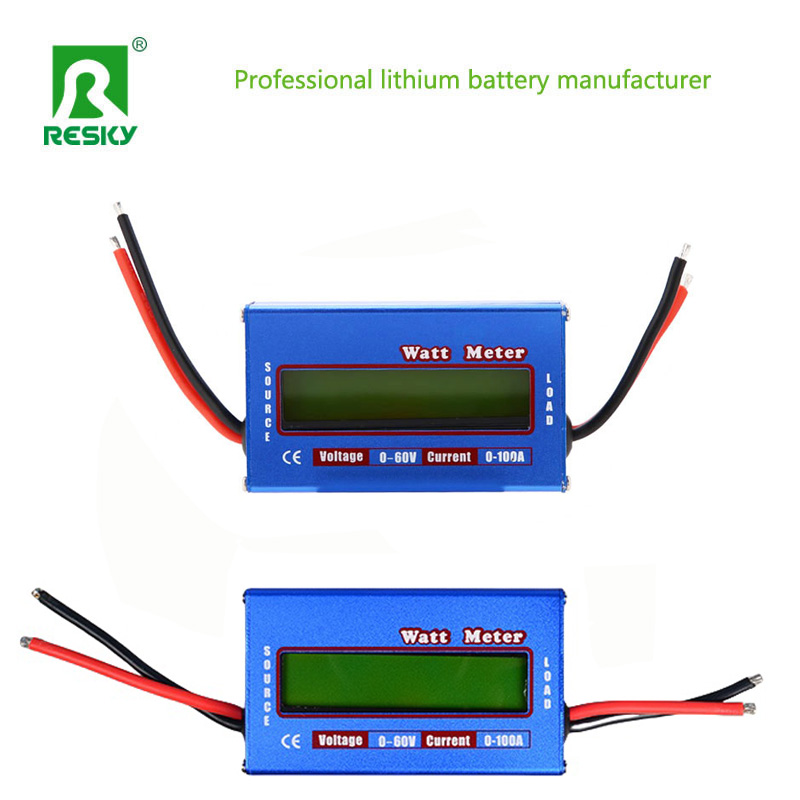

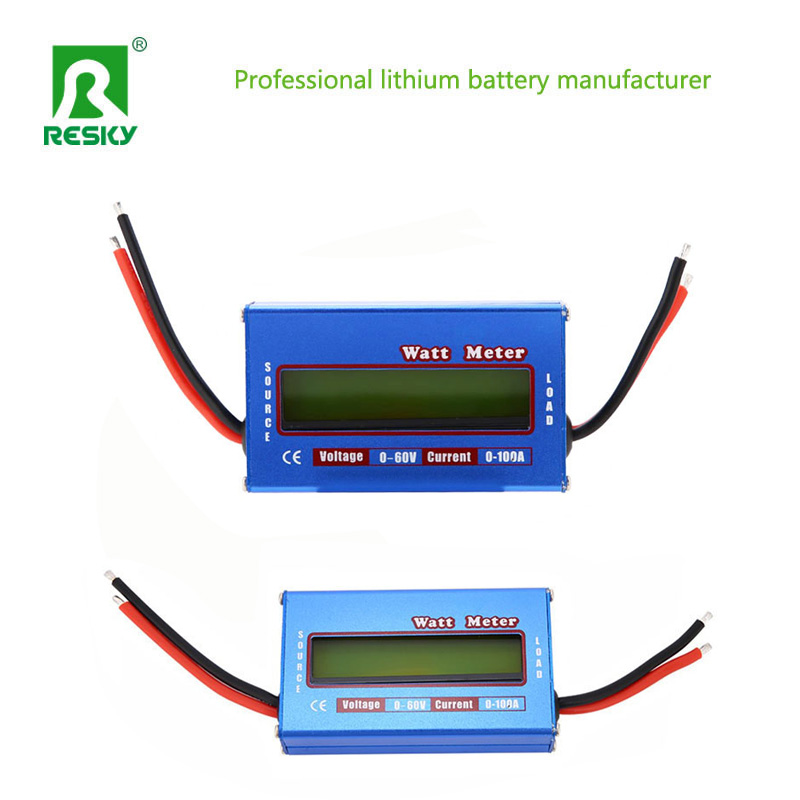

RC drone Lithium Battery Pack Watt meter High-Accuracy Power Meter DC 60V 100A RC Watt Meter Checker Balance Voltage Battery Power Analyzer
Professional RC Watt Meter is an excellent addition to your RC hobby, DC circuits, Solar system, Boat/RV & Battery Backup systems!
This isn’t just a watt meter-it’s the All-In-One Meter! A power meter, a volt meter, an amp-hour meter, ammeter and energy meter. Everything all in one unit! This is the perfect troubleshooting tool. This all-in-one watt meter is indispensable for analyzing, testing and troubleshooting any DIY DC power project.
Specifiation
1, Voltage:(0)V-4V-60V 0.01V (Resolution).
2, Current:0-100 A peak 0.01A (Resolution).
3, Power:0-6554 W 0.1W (Resolution).
4, Charge:0-65 Ah 0.001Ah (Resolution).
5, Energy:0-6554 wh 0.1 Wh (Resolution).
6, Measurement Update period:400mS.
7, Signal Sampling Rate:sample/s.
8, Data Queue Sequence time: 2 seconds.
9, In Circuit Resistance:0.001 Ohms.
10, Operation Current: 7 mA.
Features:
1, Digital LCD screen gives clear crisp number readings.
2, Connecting load end to the battery provides real-time battery charging reading.
3, Measure energy(wh),charge(ah), power(w),current(A) and voltage(V).
4, Connector to use an optinal receiver battery for measurement down to 0V
5, Accurate & precise 0.01 A cuurrent and 0.01 V voltage resolutions.
6, Measures peak Amps, peak Watts(except for Doc Wattson) and Voltage minimum(sag).
7, Rugged- handles 50A continuous and 100 A peak at 60V.
8, 14a ga., super fine stranded, high temperature, silicone rubber insulated wire.
9, Small & light with a tough plastic case available in several colors.
10, Acts like a wire so doesn’t affect model’s performance. Precision Alu-Chrom current sensing resistor, with only 0.001 Ohms resistance and circuitry that draws only 7 mA.
11, USes DSP to increase ADC resolution and differential measurement amplifiers to increase noise immunity.
12, Factory calibration stores constants in EEP to compensate for component tolerances.
13, Powerful , 8 MIPS micro-controller .
