Specification:

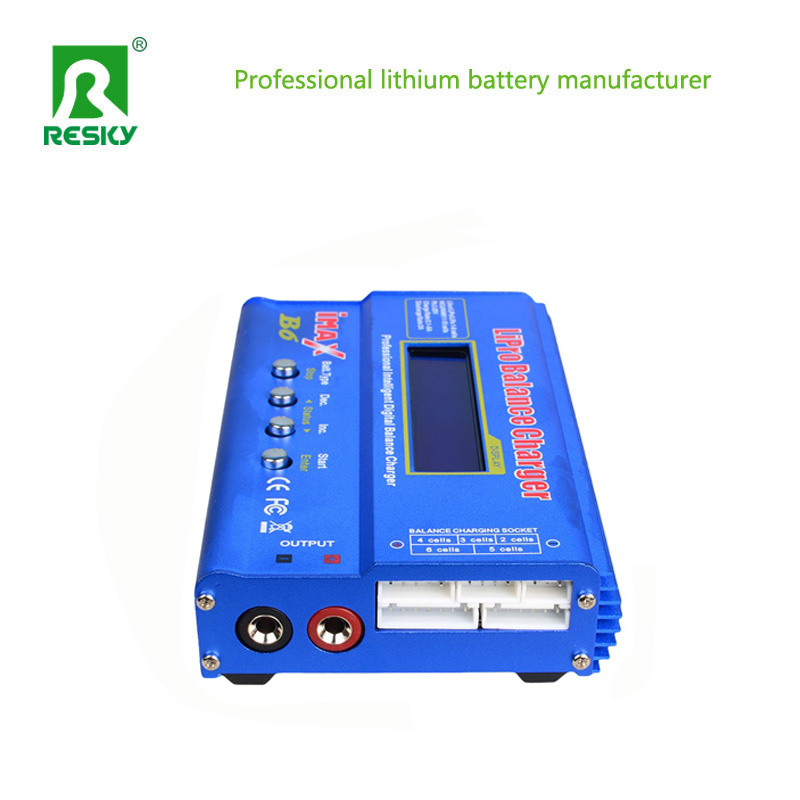

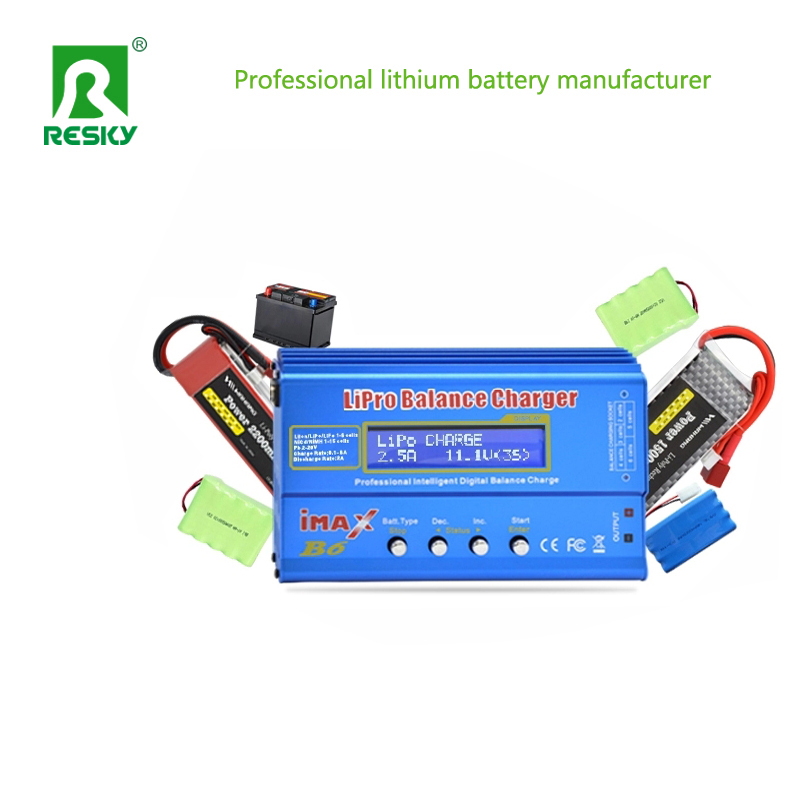

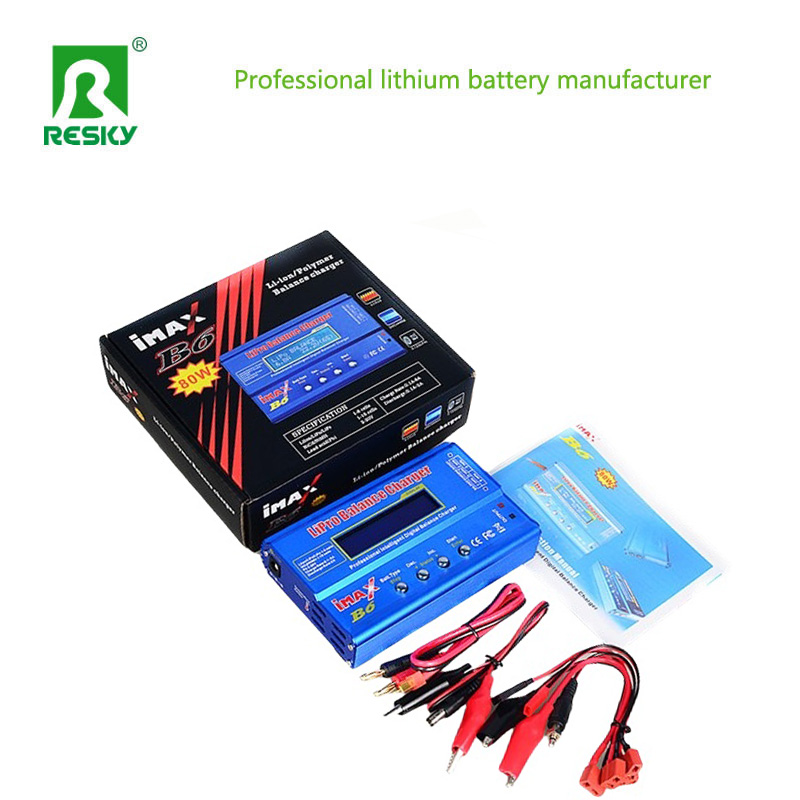

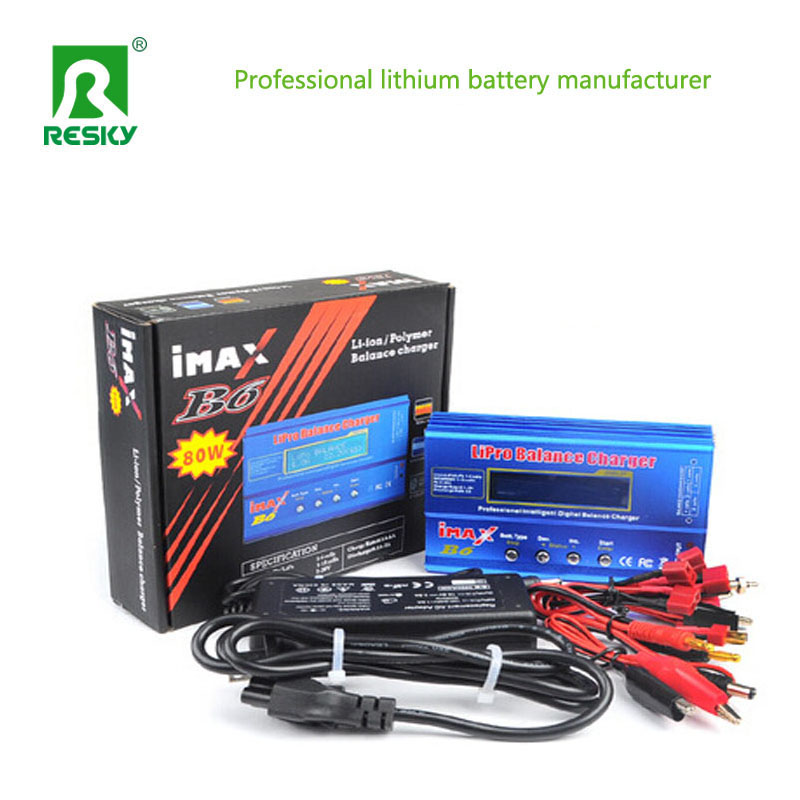

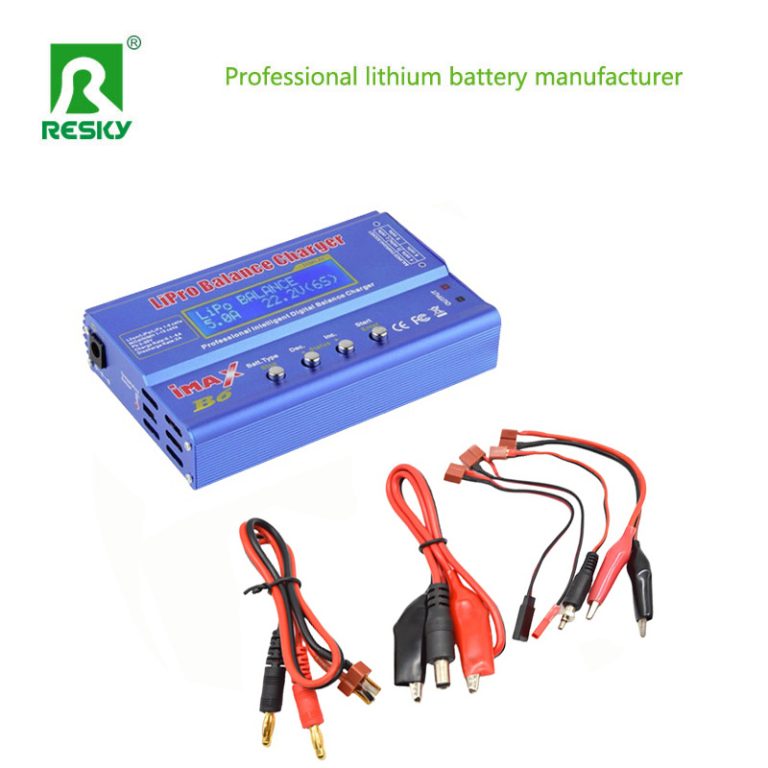

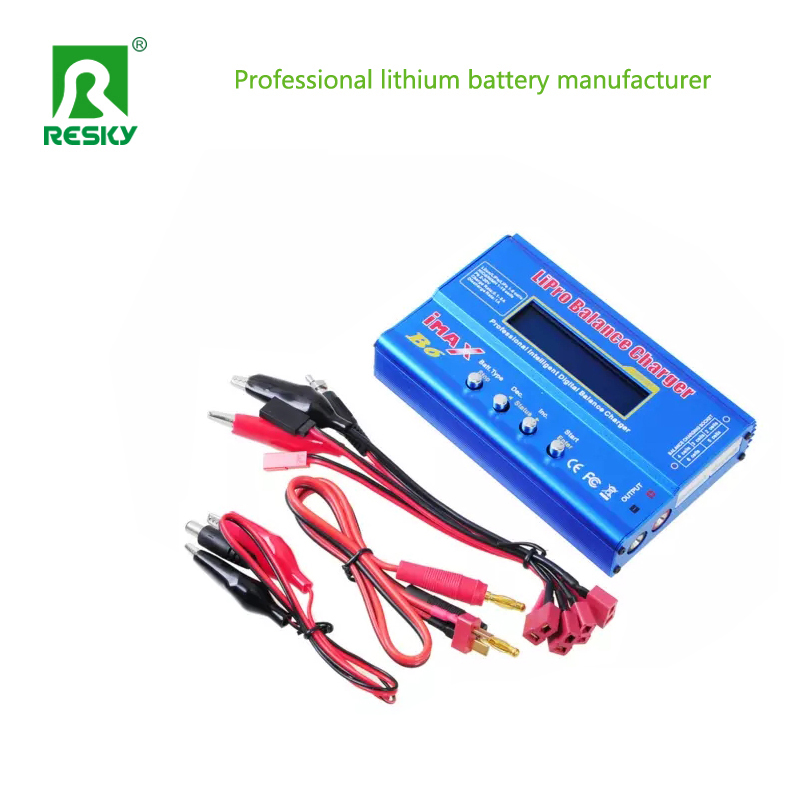

Lipo NiCad NiMH 2S-6S imax b6 lipo battery balance charger
Operation voltage range : DC 10.0 ~ 20.0 Volt
Circuit power : AC to DC adaptor (DC 10.0 ~ 20.0V / 6A)
Max. charge power 80W
Max. discharge power 10W
Charge current range : 0.1~6.0A
Discharge current range : 0.1~2.0A
Current drain for balancing Li-Po : 300mAh/cell
NiCd / NiMH battery cell count : 1~15 cell
Li-Ion / Polymer cell count : 1~6 series
Pb battery voltage : 2V~20V
Weight : 277g (Net Weight)
Dimensions : 133 x 87 x 33 mm
Features:
Battery Compatibility
Lithium-based Batteries:
Li-Po: Supports balanced charging for 1-6 cells in series, with a balance discharge current of 300mAh/cell.
Li-Ion/Li-Fe: Compatible with 1-6 cells in series.
Smart Batteries: Supports charging for smart batteries, such as those used in DJI drones.
Nickel-based Batteries:NiCd/NiMH: Supports charging for 1-15 cells.
Lead-acid Batteries: Supports voltages from 2V to 20V.
Charging and Discharging Capabilities
Charge Current Range: 0.1-6.0A (some newer versions may offer up to 7.0A)
Discharge Current Range: 0.1-1.0A or up to 2.0A in some versions
Advanced Features
Intelligent Recognition: The charger can intelligently recognize the type and number of cells in the battery, facilitating easy and accurate charging.
Battery Voltage Balance Function: Ensures that each cell in a battery pack is charged to the same voltage level, prolonging battery life.
Temperature Monitoring: Equipped with a temperature sensor interface (some versions have built-in temperature detection) to prevent overheating and protect the charger and batteries.
LCD Display: Features a backlit dot matrix LCD display that shows the operation menu and charging status, making it easy to monitor and control the charging process.
Multi-functional and Portable: Designed for versatility, supporting a wide range of battery types and sizes. Its compact size and lightweight design make it easy to carry for travel or outdoor activities.
