Feature:
Apply to most kinds of battery, such as Li-PO/ Li-Fe/ Li-ion/ Ni-CD/ Ni-MH.
High quality, safe and durable, small in size, light in weight and high performance.
Easy to operate and read the battery voltage
Display mode:
Battery cell voltage
Total voltage
Lowest cell voltage
Highest cell voltage
Voltage gap between highest cell voltage and lowest cell voltage
Remaining battery capacity (%)
| |
LIPO |
LIFE |
Li-lon |
NiCd |
NiMH |
| Input cells |
2-7 cells |
2-7 cells |
2-7 cells |
4-7 cells |
4-7 cells |
| Total Voltage |
√ |
√ |
√ |
√ |
√ |
| Total cell battery capacity(0-99%) |
√ |
√ |
√ |
X |
X |
| Individual Battery cell voltage |
√ |
√ |
√ |
X |
X |
| Lowest cell voltage |
√ |
√ |
√ |
X |
X |
| Highest cell voltage |
√ |
√ |
√ |
X |
X |
Voltage Difference Between
Highest and lowest cell voltages |
√ |
√ |
√ |
X |
X |

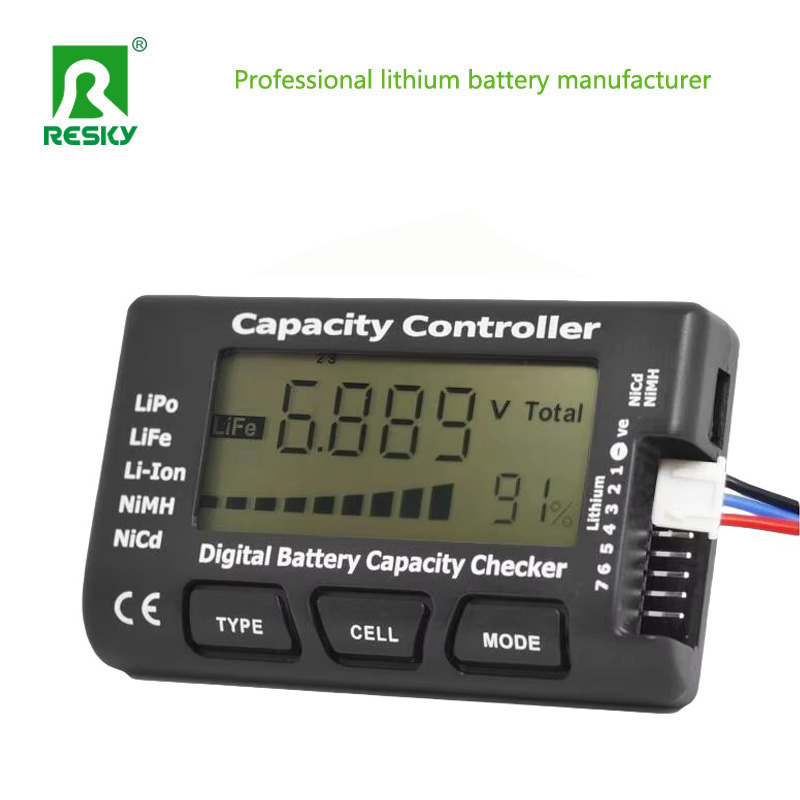

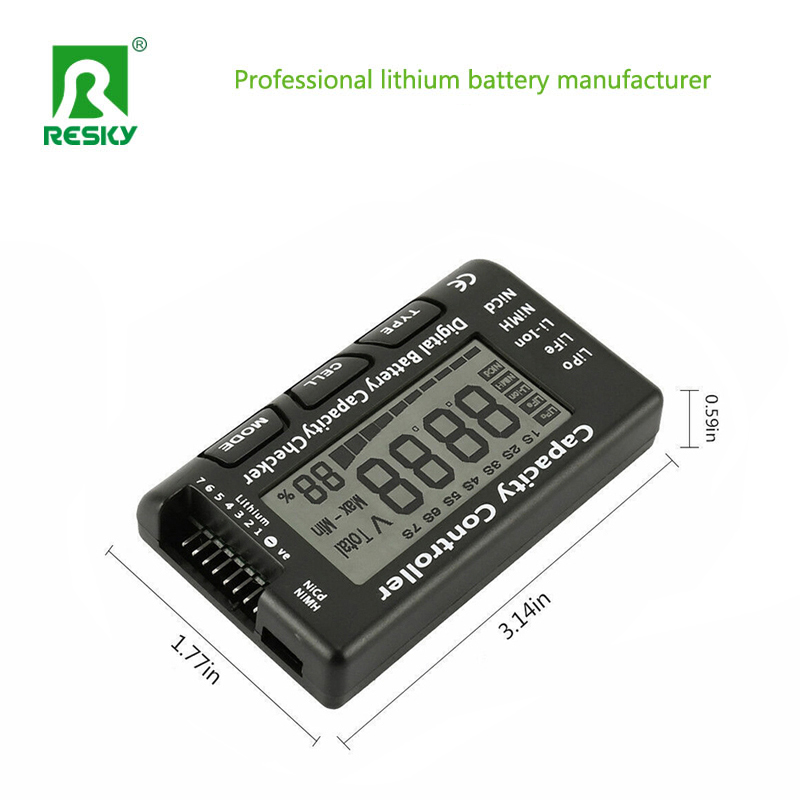

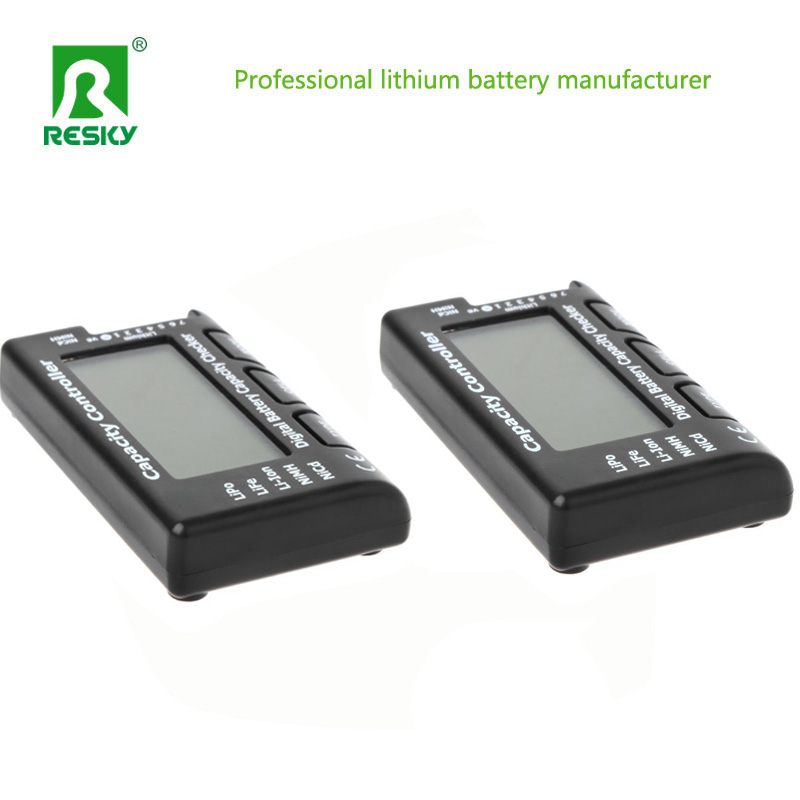

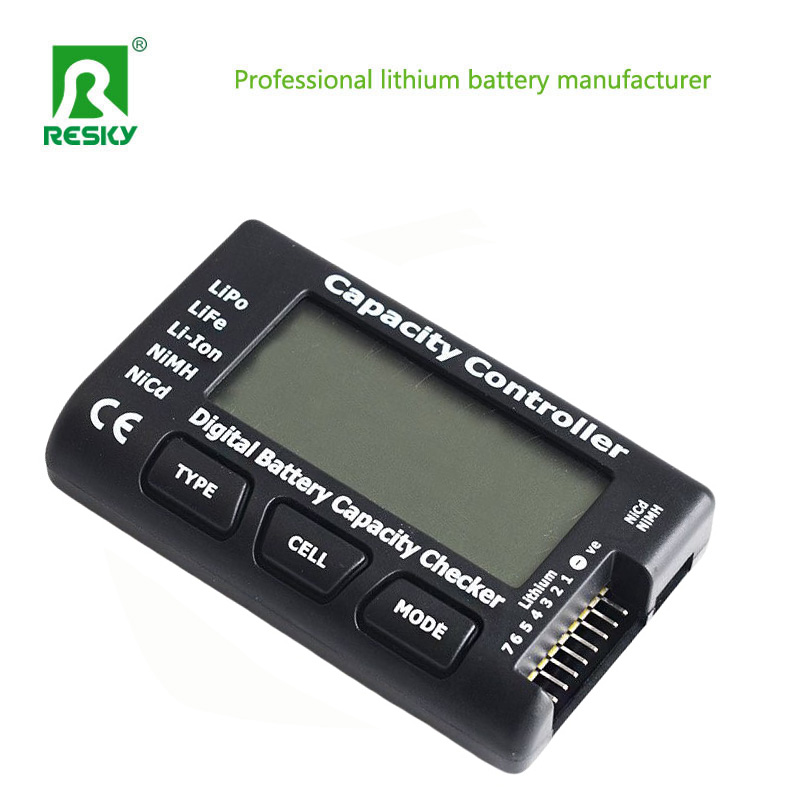

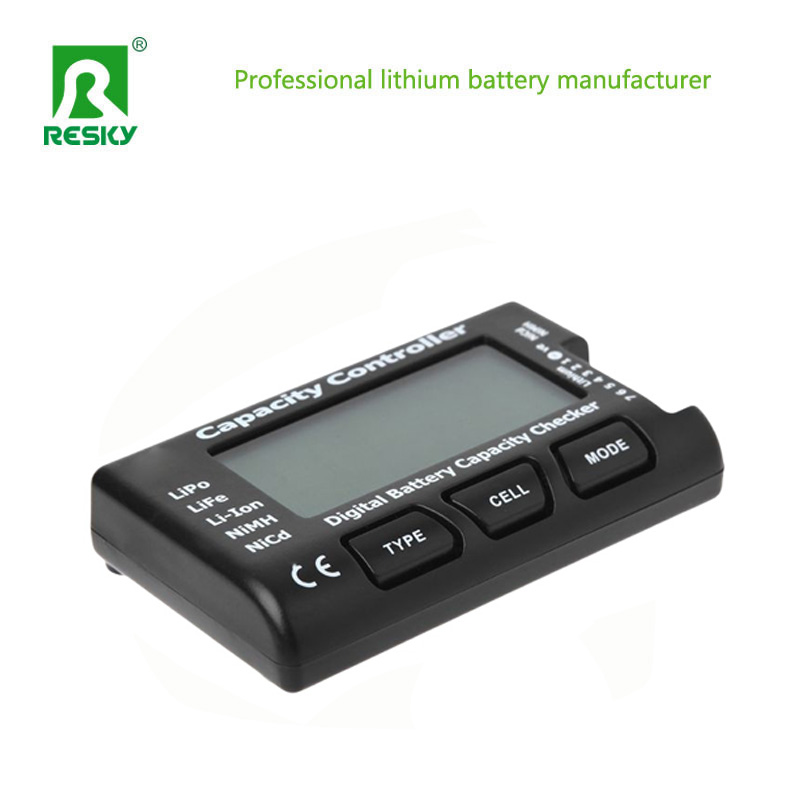

RC CellMeter-7 Digital Battery Capacity Checker LiPo LiFe Li-ion NiMH Nicd
Input Voltage: 10~15V DC
Battery Type & Cells: 1~12 Li-Po, Li-Ion, Li-Fe / 1~30 NiCd, NiMH / 1~6 Lead-Acid
Battery Capacity: 100mAh ~ 20,000mAh adjustable ONLY for Li-Po, Li-Ion, Li-Fe
Charge Rate: 0.1A ~ 10A Adjustable in 100mA steps (Max 180W)
Discharge Rate: 0.1A ~ 10A in 100mA steps (auto limited to 80W max)
Trickle Charge Rate: 0 ~ 500mA & Automatic Balancing Interface compatible with Fusion 6 & 12 cell balancers
Charge Termination: ‘Zero Delta V’ peak detection for NiCd/NiMH ‘Constant current/constand voltage’ for Li-Ion/Li-Po/Li-Fe & Pb
Delta Peak Sensitivity: 5mV ~ 20mV (per cell)
Package Included:
1 x LCD Battery Capacity Voltage Checker
1 x Operating Instruction
